Product Details:
Payment & Shipping Terms:
|
Brand: | QH Industrial | Current: | 1 A ~ 20 A |
---|---|---|---|
Voltage: | 12v, Or Per Customers' Drawing | Resistant:: | <=60mOu,or Pe Customers' Demand |
Spring Force: | 70 ~ 150 Etc, Per Customer's Demand | Material: | Brass, Stainless Steel,Copper, C3604 |
Brass Material: | C3604 | Life Cycle: | 30,000 ~100,000 Times |
Gold Plating:: | 1 U' ~ 40 U', Or Per Customer's Demand | Type: | Single Head Or Double Head |
Application: | Electronic Products, Watch, TV ,Cellphone | Dimension: | Per Drawings |
ODM / OEM: | Can Made According To Customer Drawing |

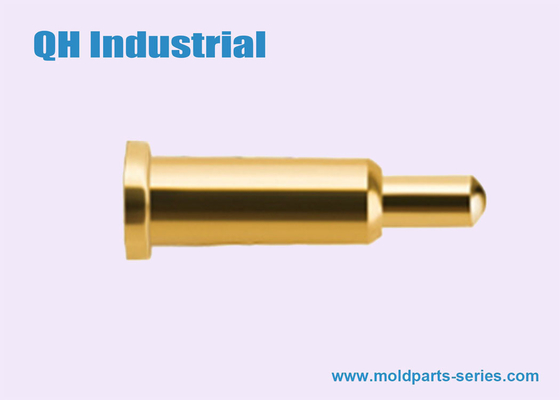

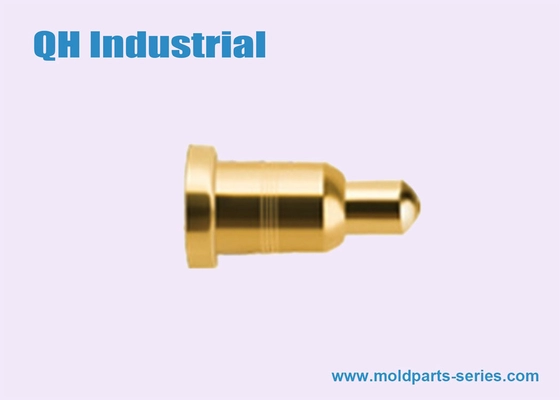

Spring Probe Pin,SMD SMT Pogo Pin,1mm 2mm 2.5mm 5mm 6mm Gold Plated Battery Spring Loaded Pin
Company Information
Production Workshops & Testing Equipments & Certification
Quality Assurance
1> IQC: Incoming material control to make sure all the raw materials are qualified.
2> IPQC:
2.1> Operators follow the daily check list to check the machines to make sure they are in good conditions, and follow the spec to make products
2.2> Use qualified operators and correct parameters to make sure good quality.
2.3> Technicians / team leaders online check the quality.
2.4> IQPC according to the quality assurance procedure to check the quality.
3> OQC : QC 100% quality check after production with testing machines
We QH Iudustiral is a professional manufacturer of Pogo Pin ,Pogo Pin Connector, 2 PIn to 18 pin or above connectors ,one or two row or three row etc in China.
Our production process is in line with the international standard.
We can produce different kinds of pogo pin with different materials, dimensions, process flow. The tolerance is high precision, details depend on the products our customers' request.
Our first priority is to provide the best Pogo Pin Connector for our customers, not only the service and quality, but also offering Pogo Pin Connector solutions for our dear customers.
If you are interested in our products, please contact us at your convenience.
Product Description
Material | Brass(C3604) |
Color | Gold |
Size | Depends on customers' requirements |
Type | SMT, per customers' demand |
Plated | Gold palted from 2 to 40U", can customized |
Cycle life | 30,000 ~100,000 times |
Contact resistance | 50m Ohm Max. |
Salt fog | 48H |
Rated current&voltage | 2A~40A / 12V, can be customized |
Applications | PCB,power ,charging equipments |
Certificate | ISO9001/ROHS/REACH |
Packing | 1000pcs/PE bag(or according to customer requirements) |
Payment Term | T/T,30% Deposit,70% Balance |
Payment method | T/T,PayPal, |
Freight | Air,Sea,Express |
Sample Lead Time | Inventory sample 1-3 days /customizd sample 3-7days |
Production Lead Time | 5-15 working days, or depend on order quantity |
Made For | America,Europe,Asia,South African |
Trade Term | EXW,FOB,CIF |
Service | High quality with reasonable price. |
OEM serivce, any special size, color, designs are acceptable. | |
Original sample can be re-made. |
1. PLATING
1.1) Plunger: Brass C3604,3~50 micro inch Au over 50~120 micro inch Ni;
1.2) Barrel: Brass C3604,3~50 micro inch Au over 50~120 micro inch Ni;
1.3) Spring: SUS304, 1~3 micro inch Au;
2. Rated voltage (Per Contact): 12 V;
3. Rated Current (Per Contact): 1.0A-40.0 A;
4. Insulation Resistance: 100MΩ Minimum;
5. Dielectric Withstanding Voltage: 100VRMS AT 60HZ;
6. Contact Resistance: 50 mΩ maximum before test and 60mΩ maximum after test at Pogo pin working stroke;
7. Recommended Working Stroke & Force:
7.1) Spring Force:>=30gf ;
8. Mechanical life:
8.1) Mechanical life: 30,000~100,000 Cycles;
9. Working Temperature Range:-30~85℃;
10. Salt Spray: 48 hours;
Spring Probe Pin,SMD SMT Pogo Pin,1mm 2mm 2.5mm 5mm 6mm Gold Plated Battery Spring Loaded Pin
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Water proof
Packaging & Shipping
Packing Details: Plastic bag + Carton, or clients' requirements
Delivery Details: 1. Fedex / UPS / DHL / TNT for examples
2. By air or by sea for batch goods
3. Customer designated freight forwarding
Delivery Time: 5-15 working days, depends on customers' order quantity and other requirements
Our Services
Spring Probe Pin,SMD SMT Pogo Pin,1mm 2mm 2.5mm 5mm 6mm Gold Plated Battery Spring Loaded Pin
a) We are capable of providing customized service for type selection, structure design, product application, non-standard part development, and assisting customers in solving problems of design, application and workmanship.
Swift response:
Swift sample making: brand new sample, lead time 3-7 days;
Swift production: lead time 5-15 days.
Track the delivery until goods are received
100% guarantee of all our products:
a) 5 sets of force and contact resistance tester on assembly lines, rare in this industry, guarantee quality 100%.
b) No customer complaint about product's functionality in the past 3 years, because of our continuous improvement of workmanship and quality
Advantages
1. Price: Competitive factory price with good quality.
2. Service: Short lead time , 5-15 working days according your quantity
100% on time delivery to our dear customers
3. Low MOQ : 1 pcs rapid prototype sample is available
4. Near Shenzhen and HK, its convenient for transportation.
5. OEM is available ,and also welcome ODM
6. Quality: Good experience and technology in manufacturing pogo pin.
Some engineers have more than 18 years experience in producing various kinds of precision parts, so could offer good technology support to customers
7. Advanced measurement equipments : Make sure all the requirement from our dear customers will be measurable.
8. 100% inspection before shipment.
Procedures of order
1. Please send us your drawing or sample
2. We review the drawing or sample , compare with our capability
3. We will provide you with a design if need
4. If you are satisfied with our design , we will make the corresponding sample and send it to you
5. If you are ok on the samples, please issue an order and pay 30% deposit of the total amount in advance. We will then start to make the formal mass production of your order.
6. We will deliver the finished goods to the dedicated location.
7. You pay the balance after seeing the B/L copy.
Main Markets:
North America, South America, East Europe, West Europe , North Europe, South Europe, South Asia
Spring Probe Pin,SMD SMT Pogo Pin,1mm 2mm 2.5mm 5mm 6mm Gold Plated Battery Spring Loaded Pin
FAQ
Q:Are you a trading company or a factory?
A:We are a factory in China
Q:Can I have special price and service for wholesale?
A:Yes we are professional manufacturer and have favorable price and good service for wholesalers. Both OEM and ODM are warmly welcome .
Q:What packaging does your factory use?
A: PE Bag +Plastic Box/Tray/Real Packing or packed per customer’s requirements
Q: What is the lead time that you ship the goods after I pay?
A:3~7 days for sample order, 5-15 days for bulk order, mainly depends on order qty
Q:Is the sample available?
A: Free samples are welcome, but clients need to pay for the delivery.
Q: How about the MOQ of the order?
NO MOQ.
Warmly welcome to contact with us for further cooperation.
