Home ProductsPogo Pin Connector

1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector

Good services, best cooperations.

—— Mark Strange

On Time Delievery,Good Quality, a nice busiess partner worth long teram cooperation

—— Tim Smith

Professional on quick response , good experience with this company on cooperation

—— Dirk George

Large Factory in Shenzhen , lots of equipment there, worth visit in China

—— Cathy Schider

I'm Online Chat Now

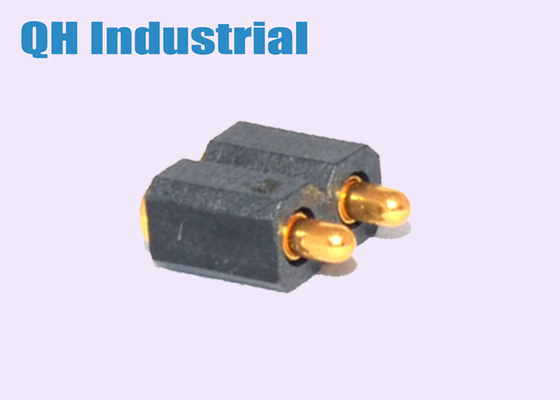

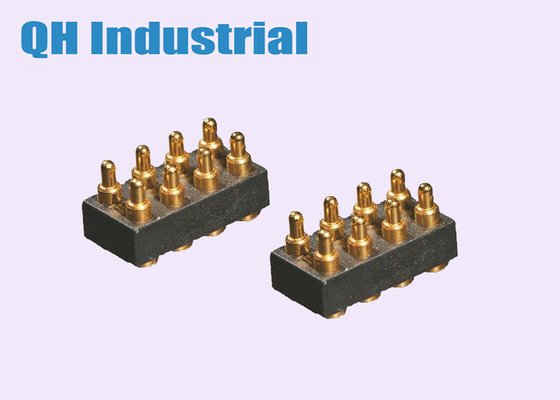

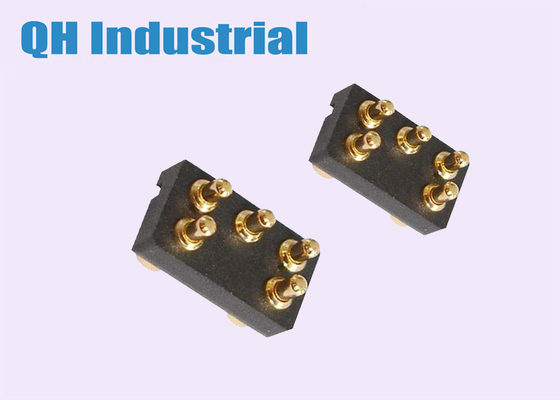

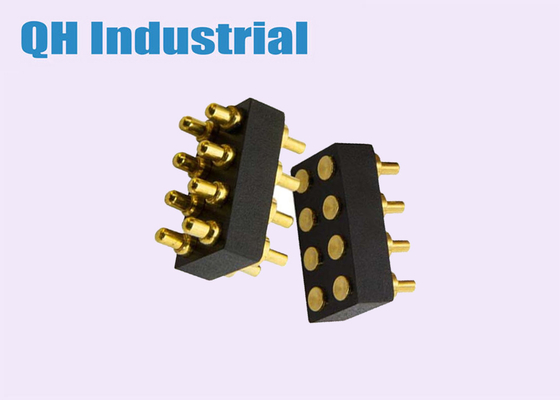

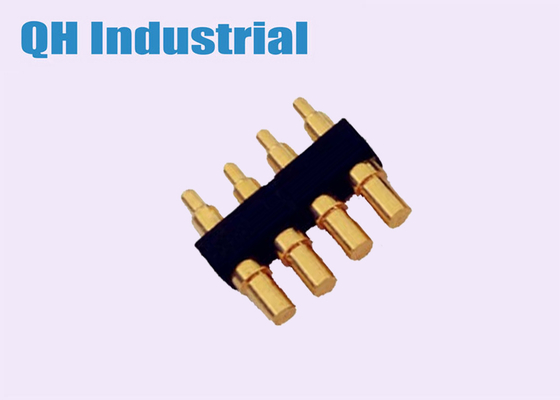

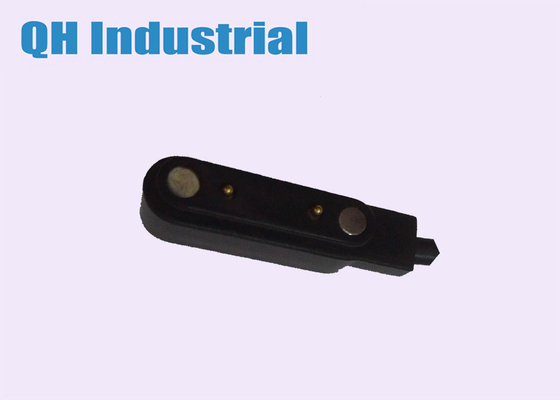

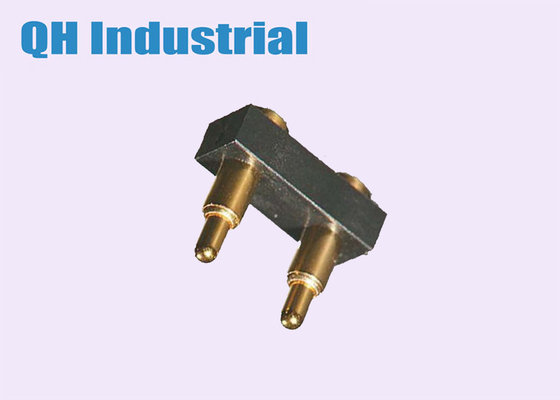

1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector

China 1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector supplier
1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector supplier 1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector supplier 1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector supplier 1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector supplier 1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector supplier 1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector supplier 1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector supplier 1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector supplier 1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector supplier 1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector supplier 1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector supplier 1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector supplier

Large Image :  1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector

Product Details:

Place of Origin: Shenzhen ,Mainland of China
Brand Name: QH Industrial
Certification: ISO9001:2008,RoHS,TS16949,CE
Model Number: Pogo Pin Connector

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: 0.1 USD/Piece ~ 5 USD/Piece
Packaging Details: Plastic bag + Carton, or clients' requirements
Delivery Time: 5-15 working days,depend on order quantity
Payment Terms: T/T, Western Union
Supply Ability: 500,000 Piece / Day
Contact Now
Detailed Product Description
Brand: QH Industrial Current: 1 A ~ 20 A
Voltage: 12v, Or Per Customers' Drawing Resistant:: <=60mOu,or Pe Customers' Demand
Spring Force: 30gf ~ 300fg Etc, Per Customer's Demand Material: Brass, Stainless Steel,Copper, C3604,Plastic ABS
Brass Material: C3604 Life Cycle: 30,000 ~100,000 Times
Gold Plating:: 1uin ~ 40uin, Or Per Customer's Demand Type: Single Head Or Double Head
Application: Electronic Products, Watch, TV ,Cellphone Dimension: 0.9mm Dia. Piston,1.5mm Dia. Base, Per Drawing
ODM / OEM: Ok Color: Pin:Gold, Plastic: Black,or Per Customers' Demand
Pitch: 1.27mm, 2.54mm,3.00mm,5.08mm,6.00mm

1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Load Pin Connector



OEM ODM SMT DIP Laptop LED Battery 2Pin 3Pin 4Pin 5Pin 1.27mm 2.54mm 3mm Pitch Waterproof Gold Plated Pogo Pin Connector

pogo pin

pogo pin

pogo pin



1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Load Pin Connector



Company Information



Production Workshops & Testing Equipments & Certification

pogo pin

Quality Assurance



1> IQC: Incoming material control to make sure all the raw materials are qualified with quality requirement for raw material.



2> IPQC:

  2.1> Operators follow the daily workstation checklist to check the machines to make sure they are in good conditions, and follow the spec to make products

  2.2> Use qualified operators and correct parameters to make sure good quality.

  2.3> Technicians / team leaders online check the quality.

  2.4> IQPC according to the quality assurance procedure to check the quality.



3> OQC : QC 100% quality check after production with testing machines

pogo pin quality assurance



pogo pin certification

We QH Iudustiral is a professional manufacturer of Pogo Pin ,Pogo Pin Connector, 2 Pin to 18Pin or above connectors ,one or two row or three row etc in China.
Our production process is in line with the international standard.
We can produce different kinds of pogo pin with different materials, dimensions, process flow. The tolerance is high precision, details depend on the products our customers' request.
Our first priority is to provide the best Pogo Pin Connector for our customers, not only the service and quality, but also offering Pogo Pin Connector solutions for our dear customers.

If you are interested in our products, please contact us at your convenience.



Product Description



Material Piston & Brass: Brass(C3604), Spring :Stainless Steel, Plastic: ABS
Color Gold or other coating color per customers' requirements
Size Depends on customers' requirements
Type SMT, SMD,DIP,Solder Tail, Through Hole , Therad, per customers' demand
Plated Gold plated from 2uin to 40uin, can customized
Cycle life 30,000 ~100,000 times
Contact resistance 50m Ohm Max.
Salt fog 48Hours
Rated current&voltage 2Ampee~40Ampee / 12V, can be customized
Applications PCB,power ,charging equipments
Certificate ISO9001/ROHS/REACH /CE
Packing 1000pcs/PE bag, or according to customer requirements
Payment Term T/T,30% Deposit,70% Balance
Payment method T/T,PayPal,
Freight Air,Sea,Express
Sample Lead Time Inventory sample 1-3 days /customizd sample 3-7days
Production Lead Time 5-15 working days, or depend on order quantity
Made For America,Europe,Asia,South African
Trade Term EXW,FOB,CIF
Service High quality with reasonable price.
OEM serivce, any special size, color, designs are acceptable.
Original sample can be re-made.



OEM ODM SMT DIP Laptop LED Battery 2Pin 3Pin 4Pin 5Pin 1.27mm 2.54mm 3mm 5.04mm 6mm Pitch Waterproof 1uin 2uin 3uin 5uin 8uin 10uin 20uin 50uin 60uin Gold Plated Spring Load Pogo Pin Connector



1. PLATING

   1.1) Plunger: Brass C3604,3~50 micro inch Au over 50~120 micro inch Ni;

   1.2) Barrel: Brass C3604,3~50 micro inch Au over 50~120 micro inch Ni;

   1.3) Spring: SUS304, 1~3 micro inch Au;

2. Rated voltage (Per Contact): 12 V;

3. Rated Current (Per Contact): 1.0A-40.0 A;

4. Insulation Resistance: 100MΩ Minimum;

5. Dielectric Withstanding Voltage: 100VRMS AT 60HZ;

6. Contact Resistance: 50 mΩ maximum before test and 60mΩ maximum after test at Pogo pin working stroke;

7. Recommended Working Stroke & Force:

    7.1) Spring Force:>=30gf ;

8. Mechanical life:

    8.1) Mechanical life: 30,000~100,000 Cycles;

9. Working Temperature Range:-30~85℃;

10. Salt Spray: 48 hours;

11. Pitch: 1.27mm, 2.54mm, 3mm, 5.08mm, 6mm



Characteristics:

1. Female pogo pin connector, male pogo pin connector,

2. Free samples with high class precision, 0.01mm precision

3. High recycling, Large Current ,Low MOQ, Low-Resistance

4. Standard & Non-Standard Pogo pin connector

5. OEM / ODM , Can be custom Designed

6. One Row, two rows, three rows

7. Surface Mount Soldering, Double Head, Flat Head

8. Water proof



Pogo Pin

Application

This reliable technology has been used by many world-class customers and applied for many kinds of electronic products, such as cell phones, GPS, notebook PC, hearing aids, smart watch
Battery connector, Electrical DC Power connector, Electronic component connector, Electronic Products connector, LED lighting charger pogo pin connector, Medical Component pogo pin connector , Mobile Phone pogo pin connector, Mount USB pogo pin connector, Proble PCB pogo pin connector, Quick Wire connector pogo pin connector, Smartphone pogo pin connector, SMT / SMD pogo pin connector, Telecom / Mobile pogo pin connector, Wearable Devices pogo pin connector, Wearable digital device pogo pin connector, Wire Adaptors pogo pin connectors, Andor TV Box pogo pin connector, Antenna Clips Battery pogo pin connector.



Packaging & Shipping



Packing Details:  Plastic bag + Carton, or clients' requirements





Delivery Details:  1. Fedex / UPS / DHL / TNT for examples

                              2. By air or by sea for batch goods

                              3. Customer designated freight forwarding



Delivery Time:     5-15 working days, depends on customers' order quantity and other requirements



Our Services



1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Load Pin Connector



a) We are capable of providing customized service for type selection, structure design, product application, non-standard part development, and assisting customers in solving problems of design, application and workmanship.



Swift response:

Swift sample making: brand new sample, lead time 3-7 days;

Swift production: lead time 5-15 days.



Track the delivery until goods are received



100% guarantee of all our products:

   a) 5 sets of force and contact resistance tester on assembly lines, rare in this industry, guarantee quality 100%.

   b) No customer complaint about product's functionality in the past 3 years, because of our continuous improvement of workmanship and quality



Advantages



1. Price:  Competitive factory price with good quality.



2. Service:  Short lead time , 5-15 working days according your quantity

                    100% on time delivery to our dear customers



3. Low MOQ  : 1 pcs rapid prototype sample is available



4. Near Shenzhen and Hongkong Port, its convenient for transportation.



5. OEM is available ,and also welcome ODM



6. Quality:  Good experience and technology in manufacturing pogo pin.

                  Some engineers have more than 18 years experience in producing various kinds of precision parts, so could offer good technology support to customers



7. Advanced measurement equipments : Make sure all the requirement from our dear customers will be measurable.



8. 100% inspection before shipment.



pogo pin

Procedures of order



1. Please send us your drawing or sample with detail dension, current rate requirement ,gold plated requirement, quanity etc

2. We review the drawing or sample , compare with our capability

3. We will provide you with a design if need

4. If you are satisfied with our design , we will make the corresponding sample and send it to you

5. If you are ok on the samples, please issue an order and pay 30% deposit of the total amount in advance. We will then start to make the formal mass production of your order.

6. We will deliver the finished goods to the dedicated location.

7. You pay the balance after seeing the B/L copy.





Main Markets:

North America, South America, East Europe, West Europe , North Europe, South Europe, South Asia

pogo pin marketing



1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Load Pin Connector



FAQ



Q:Are you a trading company or a factory?
A:We are a factory in Shenzhen ,Mainland of China



Q:Can I have special price and service for wholesale?
A:Yes we are professional manufacturer and have favorable price and good service for wholesalers. Both OEM and ODM are warmly welcome .

Q:What packaging does your factory use?
A:
PE Bag +Plastic Box/Tray/Real Packing or packed per customer’s requirements



Q: What is the lead time that you ship the goods after I pay?
A:3~7 days for sample order, 5-15 days for bulk order, mainly depends on order qty

Q:Is the sample available?
A: Free samples are welcome, but clients need to pay for the delivery.



Q: How about the MOQ of the order?

A: NO MOQ.



Warmly welcome guest from all over the world to contact us for further cooperation.



Company Website : http://www.moldparts-series.com/



Alibaba Website : https://mold-parts.en.alibaba.com/productgrouplist-805229724/Pogo_Pin_Connector.html?spm=a2700.icbuShop.0.0.334d1e4ckGRTMv



Also can visit us at : Global Source Electronic Components Exhibition from Oct 11 to Oct 14,2018 or Apr 11 to Apr 14 ,2019 at AsiaWorld-Expo, Honkong



1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Pin Connector

1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Load Pin Connector

QH Industrial High Class Precision Customized 2Pin 3Pin 4Pin Single Head 2.54mm 5.08mm Pitch Spring Pogo Pin Connectorctor

New Peoduct Low MOQ Short Lead Time Brass C3604 Copper Gold Plated Best Quality Pogo Pin Connector

1.27mm 2.54mm 3mm 5.08mm 6mm Ptich 2Pin 3Pin 4Pin 5Pin 6Pin Gold Plating 2uin 4uin 6uin Spring Test Probe Load Pin Connector
